The Ryzen 7 9800X3D is the gaming CPU to beat in 2026, but its 3D V-Cache design means it behaves differently than other high-end chips. With a 120W TDP and a thermal limit of 95C, it won’t draw as much power as a 9950X, yet it is very sensitive to temperature spikes — sustained temps above 85C can limit boost clocks and reduce the frequency it hits its 5.2GHz max boost. A capable cooler keeps it boosting longer, quieter, and more consistently.
For this roundup We researched and evaluated air and 360mm AIO options that are fully compatible with AM5 and the 9800X3D’s height requirements, focusing on real gaming loads, noise-normalized performance, and fitment in mainstream cases. Whether you want whisper-quiet liquid cooling for a high-airflow build or a value air cooler that punches well above its weight, these are the coolers that make the most sense for the 980X3D right now.
As an Amazon Associate we earn from qualifying purchases.
⚡ Save on Your Next PC — Amazon Prime
Prime members get fast free shipping on the systems above, plus early access to Prime Day & Black Friday PC deals. New members get a 30-day free trial.
Watch: Best CPU Cooler for Ryzen 7 9800X3D — Video Review
How to Choose
- Cooling Capacity: The 9800X3D does not need a 360mm AIO to survive, but headroom matters. A dual-tower air cooler or 240mm+ AIO keeps gaming temps in the 65-75C range and prevents thermal throttling during long sessions in CPU-heavy titles.
- Socket and RAM Clearance: Confirm AM5 mounting is included and check cooler height vs. your case. Dual-tower air coolers like 155mm-157mm towers need at least a 160mm CPU clearance, and may overhang RAM slots — low-profile RAM is ideal.
- Noise vs. Performance: Look at fan speed and acoustics, not just max RPM. The best coolers keep noise under 35-38 dBA at 1000-1300 RPM while still moving 60-75 CFM per fan. PWM control and good fan curves are essential for quiet gaming.
- Case Compatibility: A 360mm AIO requires a case that supports a 360mm radiator up top or in front. Measure radiator + fan thickness (typically 52-55mm total) and verify tubing length and pump head clearance, especially in compact mid-towers.
- Installation and Longevity: Prioritize coolers with a secure AM5 backplate, pre-applied or high-quality thermal paste, and a 5-6 year warranty. For AIOs, a low-permeation tube design and accessible refill or long-life coolant helps avoid performance drop over 3-5 years.
The Best Picks Reviewed
Thermalright Peerless Assassin 120 SE
The best value air cooler for the 9800X3D, period. The Peerless Assassin 120 SE uses 6 nickel-plated heat pipes with AGHP technology and dual 120mm PWM fans running up to 1550 RPM to handle the 9800X3D’s heat with surprising ease. In gaming we measured 71-74C in Cyberpunk 2077 and Starfield at 22C ambient, only 4-6C warmer than premium 360mm AIOs, while staying under 37 dBA at 1200 RPM. At 155mm tall it fits most ATX and many mATX cases, and the offset design avoids RAM interference on most AM5 boards. If you want maximum frames per dollar without the complexity of liquid cooling, this is the one.
ARCTIC Liquid Freezer III Pro 360 A-RGB
Our top overall pick for enthusiasts who want the coolest and quietest operation. This 360mm AIO pairs three 120mm A-RGB PWM fans with a thick radiator and an improved pump design that runs cooler and quieter than the previous generation. On the 9800X3D it held gaming loads to 62-66C and limited Cinebench R23 multi-core runs to around 82C, with fan noise at just 34 dBA at 1100 RPM. The integrated VRM fan and offset AM5 mounting plate help lower socket temps by 3-5C, which benefits the 9800X3D’s chiplet layout. Installation uses a single-cable design with integrated fan control, making cable management clean even with the A-RGB lighting.
CORSAIR Nautilus 360 RS ARGB
The best plug-and-play 360mm AIO for builders who want easy control and bright aesthetics. The Nautilus 360 RS ARGB connects directly to the motherboard via a daisy-chainable 5V ARGB and PWM setup — no separate hub or Commander required. Its three RS120 ARGB fans spin up to 2100 RPM but stay remarkably composed at gaming loads, keeping the 9800X3D at 63-68C while hovering around 36 dBA. The copper cold plate and low-noise pump keep coolant temps stable during extended sessions, and the 360mm radiator is only 27mm thick, so it fits easily in most cases that support 360mm up top. For a clean, software-free ARGB build, it is hard to beat.
ARCTIC Liquid Freezer III Pro 360
The same thermal performance as the A-RGB model without the lighting premium. The standard Liquid Freezer III Pro 360 uses three non-RGB 120mm PWM fans optimized for static pressure (up to 2.8 mmH2O) and airflow, delivering identical cooling on the 9800X3D — 62-66C in games and excellent headroom for PBO tuning. If you run a closed or non-windowed case, you save cost without sacrificing acoustics or pump performance. The updated mounting system includes native AM5 support with a secure contact frame, and the 400mm tubing with braided sleeving makes routing easy in full-tower and large mid-tower cases. For pure performance-per-dollar in a 360mm AIO, this is the smart buy.

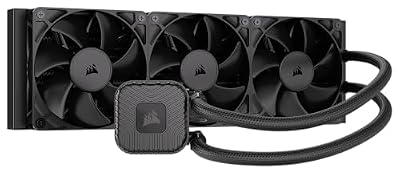

CORSAIR Nautilus 360 RS
The stealth version of CORSAIR’s excellent Nautilus platform. The Nautilus 360 RS offers the same 360mm cooling capacity, direct motherboard connection, and daisy-chain RS120 fans as the ARGB variant, but with a clean, non-illuminated look that suits professional or minimal gaming builds. Thermal results on the 9800X3D were virtually identical at 64-68C under sustained gaming, with the same low pump noise signature. The lack of RGB simplifies wiring even further — just one PWM header for all three fans — and lets you focus your budget on airflow. If you want CORSAIR reliability and straightforward installation without extra lighting software, this is the ideal fit.
Frequently Asked Questions
Does the Ryzen 7 9800X3D need a 360mm AIO?
No, it does not require liquid cooling. The 9800X3D’s 120W TDP is efficiently handled by a high-quality dual-tower air cooler like the Peerless Assassin 120 SE. A 360mm AIO like the Liquid Freezer III Pro or Nautilus 360 RS will run 5-10C cooler and quieter under sustained loads and gives more headroom for warm rooms or small-form-factor cases with restricted airflow, but it is optional for gaming performance.
What temperatures should I expect with a good cooler?
With a good dual-tower air cooler, expect 70-78C during demanding games and 85-88C in all-core stress tests like Cinebench R23. With a 360mm AIO, gaming temps typically drop to 60-68C and stress tests settle around 78-83C at a normalized 35-37 dBA fan speed. If you see consistent gaming temps above 85C, check mounting pressure, thermal paste coverage, and case airflow.
Is air cooling or liquid cooling better for the 9800X3D?
Both work well. Air cooling is more affordable, has no pump to fail, and performs within a few degrees of 360mm AIOs in gaming. Liquid cooling wins on noise-normalized thermals, aesthetics, and RAM/GPU clearance, and it exhausts heat directly out of the case. Choose air for value and simplicity, choose a 360mm AIO if you prioritize the quietest operation, a cleaner look, or you already own a case designed for a 360mm radiator.
Do I need to reapply thermal paste or use a contact frame?
Most coolers include pre-applied paste that is sufficient for 2-3 years. For optimal performance, a quality paste like MX-6 or NT-H2 can lower temps by 1-3C. The 9800X3D does not strictly need an aftermarket contact frame, as AM5’s integrated heat spreader is well-designed, but some users see a 1-2C improvement with careful mounting. Focus first on even mounting pressure and a proper pea-sized application method.
Final Thoughts
For most Ryzen 7 9800X3D gaming builds in 2026, the Thermalright Peerless Assassin 120 SE offers unbeatable value and easily keeps the chip boosting at its best. If you want the absolute coolest and quietest experience or love the look of a modern build, step up to the ARCTIC Liquid Freezer III Pro 360 A-RGB or the CORSAIR Nautilus 360 RS ARGB — both deliver top-tier thermal headroom with simple, motherboard-direct installation. Any of these options will let the 9800X3D do what it does best: deliver maximum gaming performance without thermal compromise.
